Auto Duct Line II

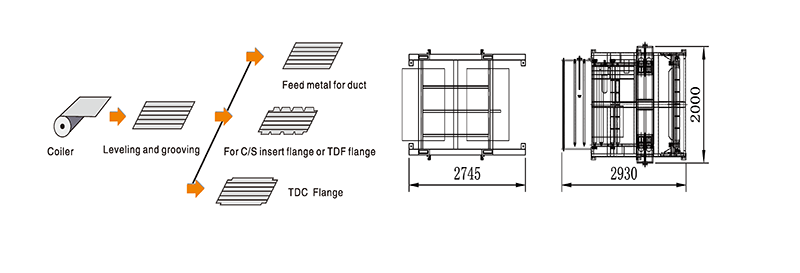

Incldes leveling and beading unit,notching unit,hydraulic shearing unit.maximum feeding speed is 16m/min by length tolerance is ±0.5mm and the diagonal tolerance is ±0.8mm.
Keywords:
Category:
★★Advantages of GZHCH Product ★★
★ Profound experience in HVAC Ducting Machinery (Since 1986).
★ Profound experience in Automatic Spiral Duct Forming (Since 2004).
★ Profound experience in Automatic Duct Production Line (Since 2006).
★ Have the largest inventory for HVAC Duct Making machines in the industry.
★ The real manufacturer with the most complete varieties of HVAC Ducting Machinery in China.
★Features★
Incldes leveling and beading unit,notching unit,hydraulic shearing unit.maximum feeding speed is 16m/min by length tolerance is ±0.5mm and the diagonal tolerance is ±0.8mm.
★basic configurations★
★dual-coils decoiler;
★HCH-III Main brain;
★(Optional)Plate-Lamination device;
★(Optional)Tie rod holes(For duct bracing)punching divice;
★(Optional)TDF Flange holes punching device.
★Auto Duct Line III Project Site Performance★
 |
 |
 |
 |
|
Model |
Thickness(mm) |
Material Width（mm) |
Coiler Capacity（kg) |
Weight(kg) |
Dimension(mm) |
|
HCH-II-1300 |
0.6-1.2 |
1250 |
6000*2 |
2900 |
2300*2160*1300 |
|
HCH-II-1600 |
1550 |
2300*2400*1300 |
|||
|
HCH-II-1300B |
0.6-1.5 |
1250 |
3100 |
2300*2160*1300 |
|
|
HCH-II-1600B |
1550 |
2300*2400*1300 |
★★★GZHCH company can give you both CNC duct production line machine which can manufacture air duct automatically. We will suggest a whole machines series in accordance with different customers needs★★★
 |
 |
